ElastiTag® Applicator

The Northfield Elastitag applicator and Elastitag Shape machine are designed to apply the Bedford Neck hanger in an efficient, fully automatic manner. The tags are available in a square or shaped format to better meet the customers desired vision. Northfield can also incorporate the required product handling for each individual product line.

Products tagged:

  • Distilled spirits
  • Juices & kombucha
  • Water
  • Olive oil
  • Milk
  • Personal Care products
  • Pet treats, bully sticks
ElastiTag® Applicator Specifications:
  • Power Requirements: 115/230 VAC filtered, 50-60 cycles, 8 amps
  • Max Speed: Up to 180 tags per minute. (*Dependent on tag size and product.)
  • Product Cap/Neck sizes: 1/2” to 4” width, custom sizes available
  • Controls: Applied Motion Products, Maple Systems
  • Controller Dimension: 16" High, 14" Wide, 6" Deep
  • Head Weight: 30 lbs.
  • Controller Weight: 40 lbs.
  • Lubrication Needs: None
  • Change Parts: None
  • Air Requirements: None
  • Minimum Tag Length in Feed Direction: 1"
  • Maximum Tag Size: TBD
  • Maximum Tag Thickness: 1/16”
  • Tag Supply: Max 16” OD Rolls, 6” ID Core

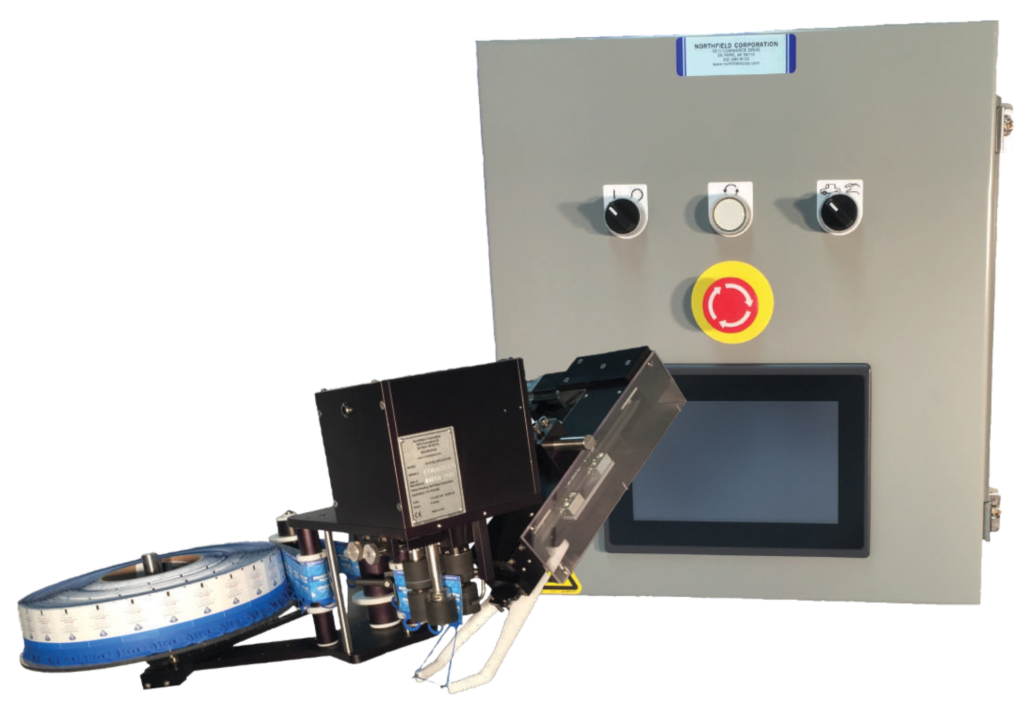

The Northfield ElastiTag® Applicator is capable of accurately applying ElastiTags® to bottle necks of all shapes and sizes. The ElastiTag® Applicator can be provided for semi-automatic operation or in line with a hugger belt system or timing screws in order to hold the correct spacing. Custom options available also.

Application examples: liquor bottles, milk bottles, juice bottles, soda bottles, water bottles, spray bottles, etc.

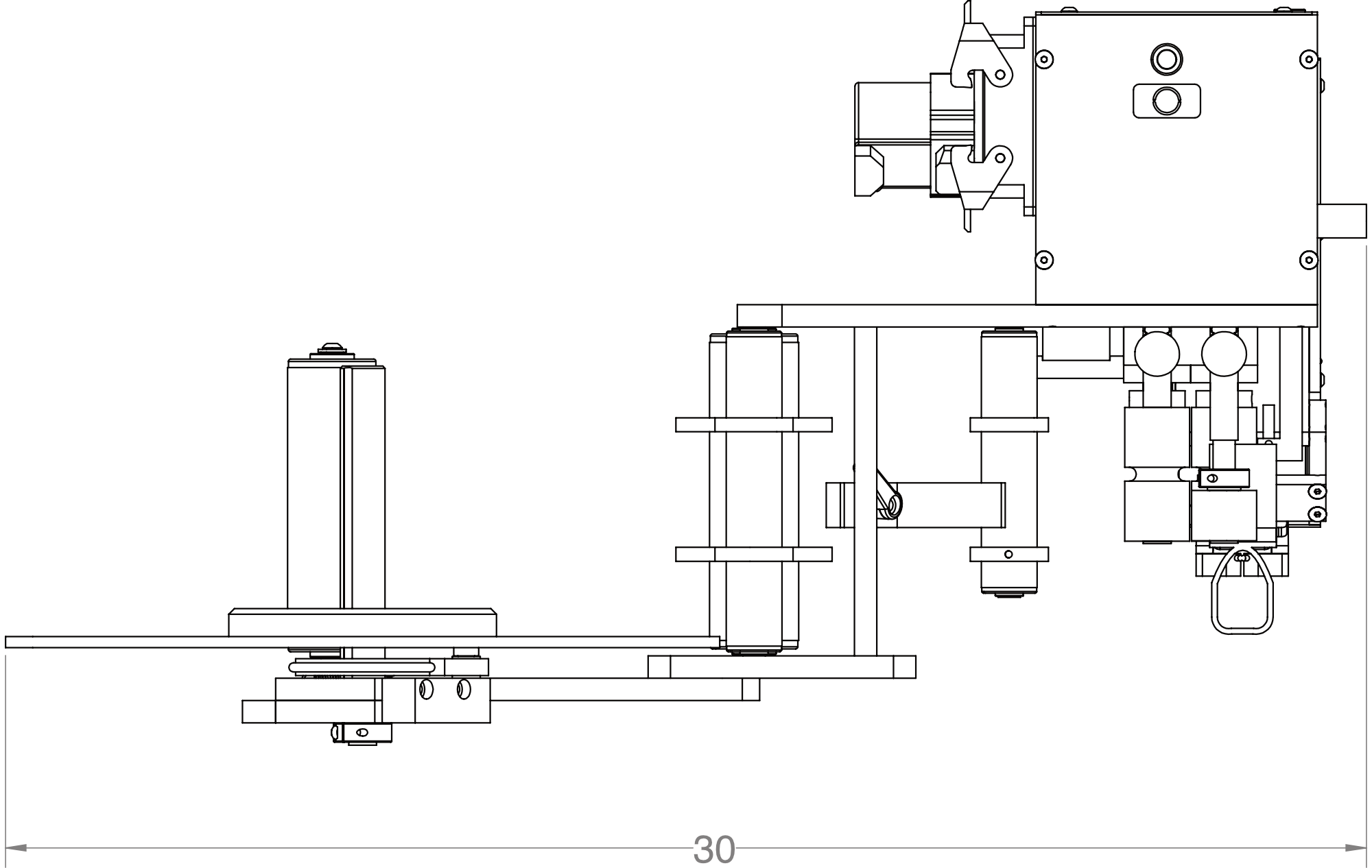

Dimensions, Head

For more information regarding pricing, rates, scheduling, or for system specifications, please contact us.
