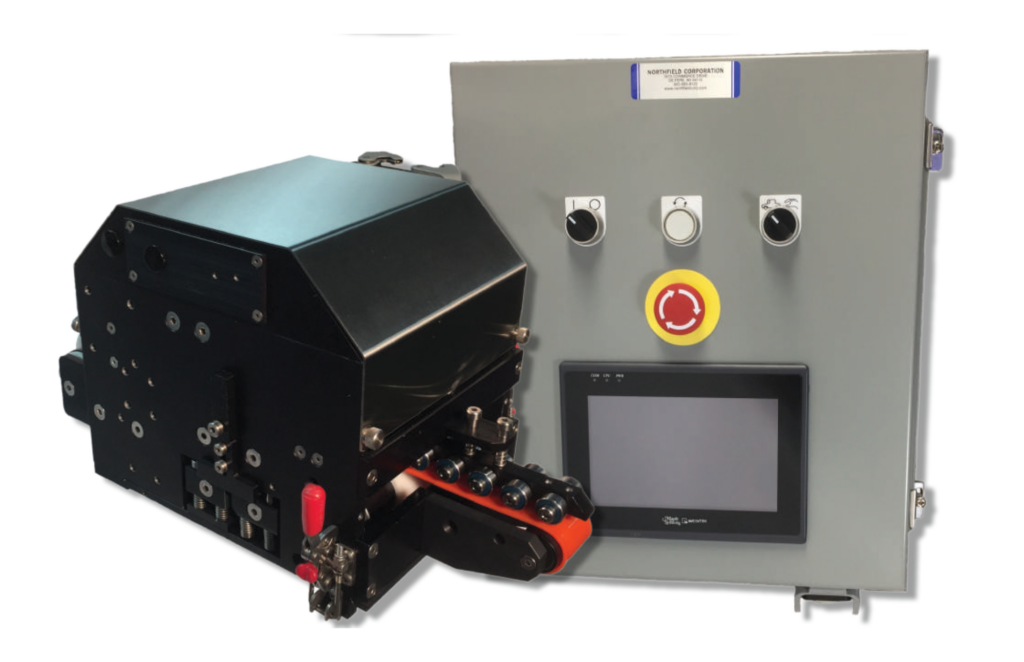

1600SRV 2D Coupon Inserter

The Northfield 1600SRV 2D coupon inserter is designed for insertion of items the customer’s product. The unit is fed with a continuous bandolier of inserts, either fanfold or roll stock allowing for continuous running.

Inserts supported:

  • Coupons
  • Trading cards
  • Tattoos
  • Game pieces
  • Customer loyalty codes
Continuous Feed Inserter Specifications:
  • Power Requirements: 115/230 VAC filtered, 50-60 cycles, 5 amps.
  • Max Speed: Up to 400+ pieces per minute. (*Dependent on insert size and product.)
  • Linear Speed, In-Feed: Up to 6,000 I.P.M.
  • Linear Speed, Out-Feed: Up to 6,000 I.P.M.
  • Controls: Applied Motion Products, Maple Systems
  • Controller Dimension: 16" High, 14" Wide, 6" Deep
  • Head Weight: 25 lbs.
  • Controller Weight: 34 lbs.
  • Lubrication Needs: None
  • Change Parts: None
  • Air Requirements: None
  • Minimum Insert Size: 1" Wide x 1" Long
  • Maximum Insert Size: 6" Wide X 7" Long
  • Insert Thickness: Up-to 1/16"
  • Splices: Heat Seal Factory Splices Only
  • Burst Tensile Strength: 8-12 lbs. (Recommended not to exceed 17 lbs.)

The Northfield Model 1600SRV 2D inserter is capable of accurately inserting 2D overwrapped, NX2Food, and perforated paper inserts; either in roll or bandoiler form. Some of the application examples are: horizonal/vertical fillers, carton lines, open container lines, and hot melt on/in pack applications.

Insert examples: game pieces, sweepstakes, coupons, instructions, rebates, etc.

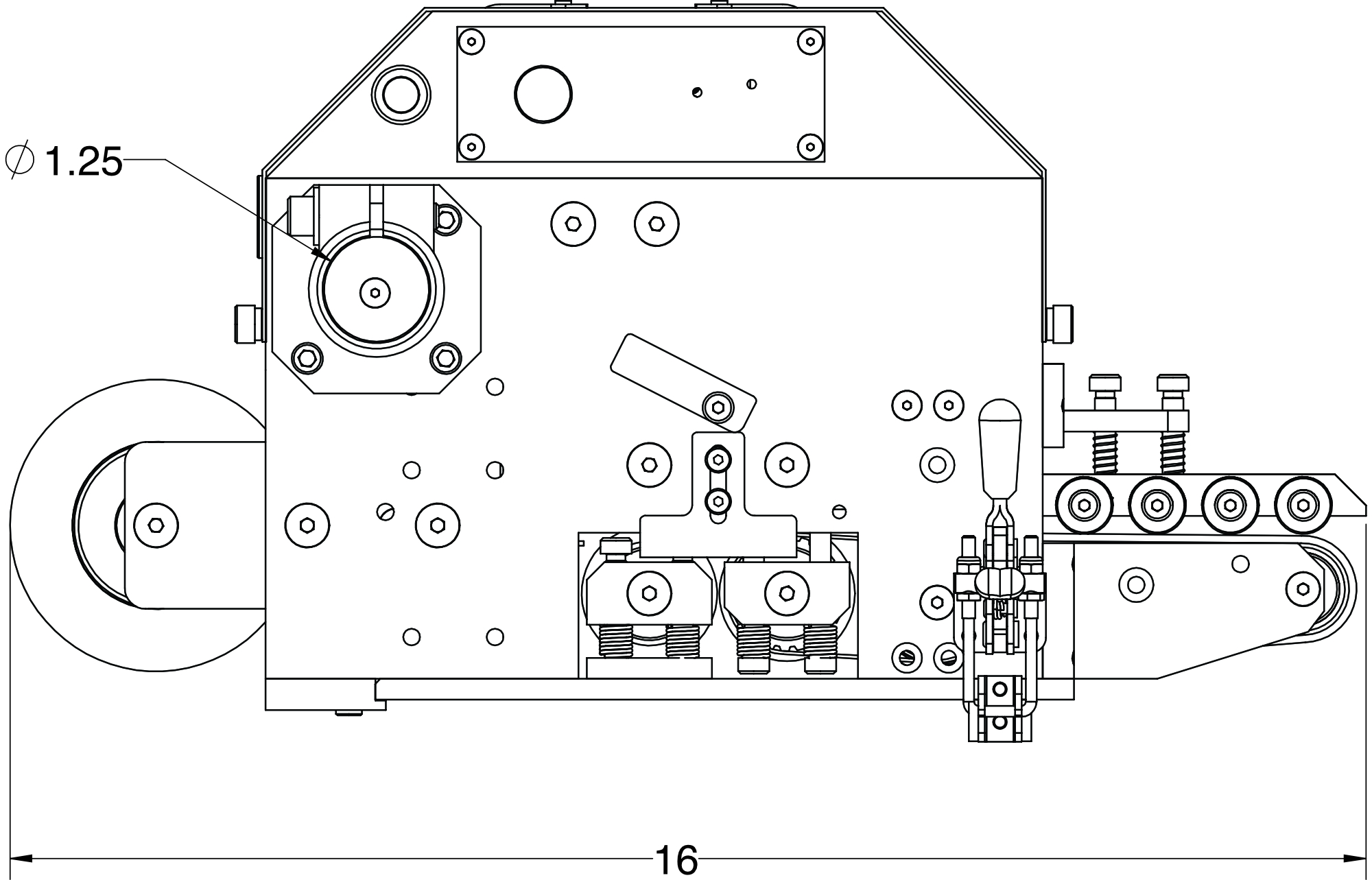

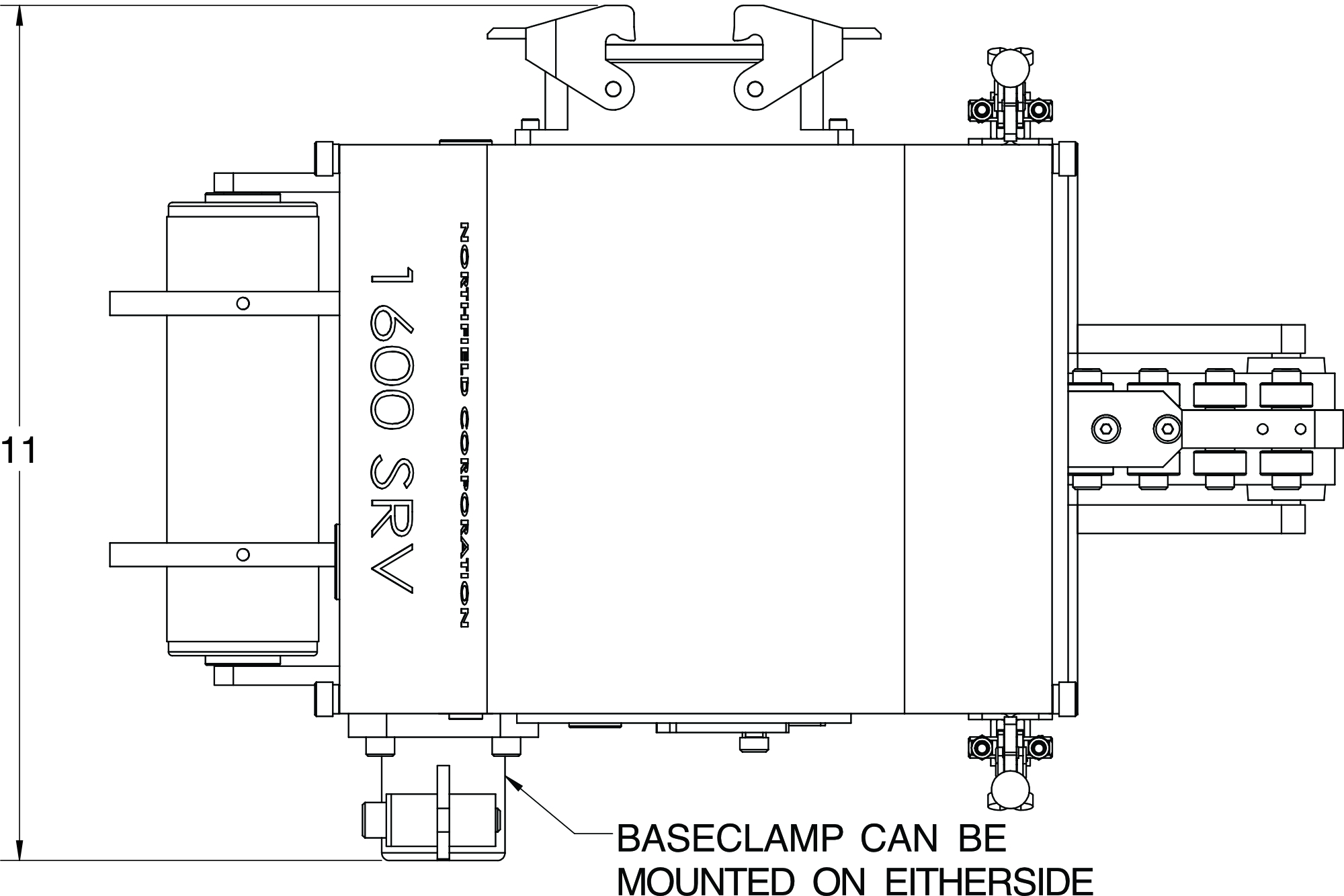

Dimensions, Head

For more information regarding pricing, rates, scheduling, or for system specifications, please contact us.
