Product Specifications — S84NX - S86NX

S84NX

Print Resolution:

  • 203dpi (8 dots/mm)
  • 305dpi (12 dots/mm)
  • 609dpi (24 dots/mm)

Print Speed:

  • 16ips (406.4mm/sec)
  • 14ips (355.6mm/sec)
  • 6ips (15.4 2mm/sec)

Print Area – Max Width: 4.1″ (104mm)

Print Area – Max Length:

  • 98.43″ (2500mm)
  • 59.06″ (1500mm)
  • 15.75″ (400mm)

Media Size (with liner) – Continuous:

  • Width: 0.51” to 5.16”(13 to 131mm)
  • Length: 0.35” to 98.54”(9 to 2503mm) | 0.35” to 59.17”(9 to 1503mm) | 0.35” to 15.87”(9 to 403mm)

Media Size (with liner) – Dispense:

  • Width: 0.51” to 5.16” (13 to 131mm)
  • Length: Thermal Transfer Model: 0.51” to 14.13” (13 to 359mm) Direct Thermal Model: 0.71” to 14.13” (18 to 359mm)

Ribbon:

  • Length / width: 1476.4ft. (450m) when width is less than 1.56” (39.5mm) | 1968.5 ft. (600m) when width is equal or more than 1.55” (39.5mm)

  • Roll diameter: 4.25” (108mm)

  • Core: Core diameter: Ø 1” (25.4mm)

  • Wind direction: Face-in/out, No Setting Change Required

  • Ribbon Tension: Clutch-Free Electronic Control System

Dimensions: W 9.65” (245mm) x D 16.06” (408mm) x H 11.81” (300mm)

Weight:

  • Thermal Transfer Model: 31lbs (14.1kg)
  • Direct Thermal Model: 28lbs (12.7kg)

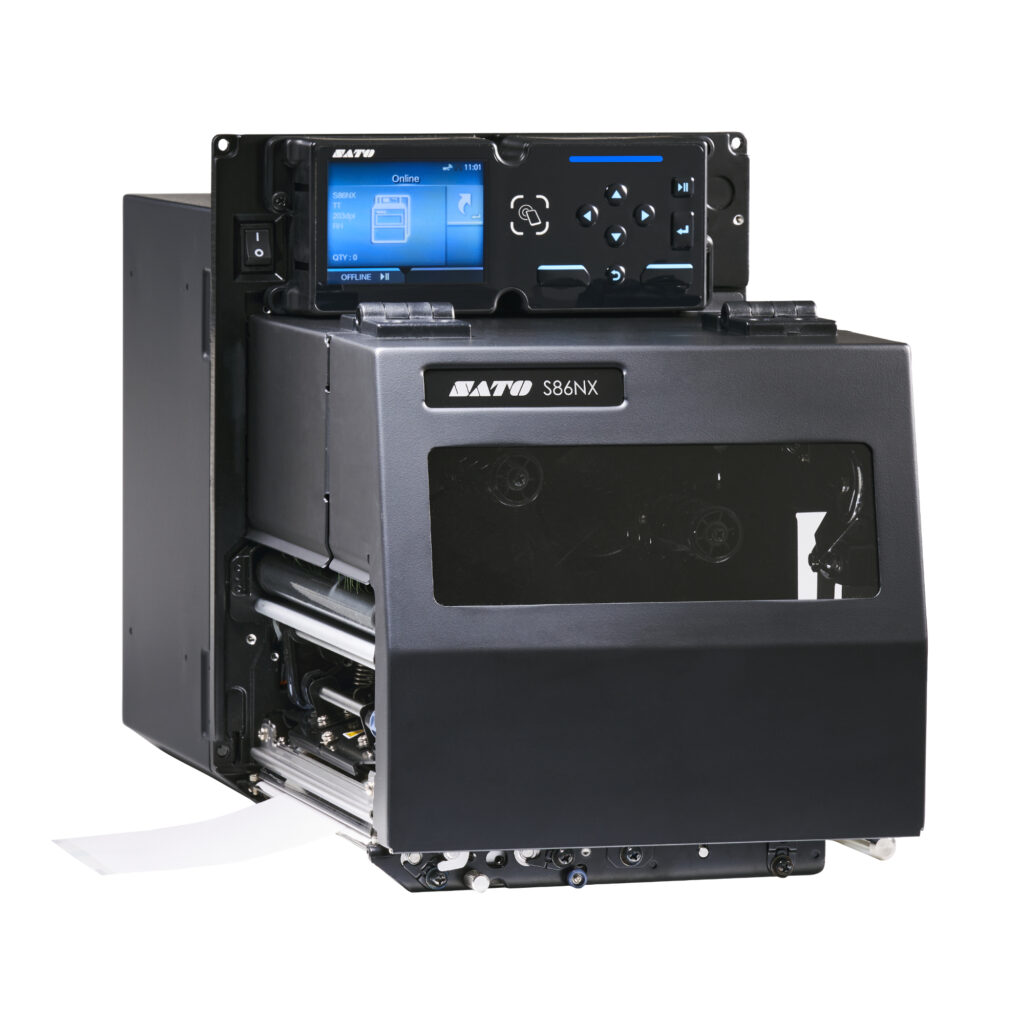

S86NX

Print Resolution:

  • 203dpi (8 dots/mm)
  • 305dpi (12 dots/mm)

Print Speed:

  • 14ips (355.6mm/sec)
  • 12ips (304.8mm/sec)

Print Area – Max Width: 6.6″ (167.5mm)

Print Area – Max Length:

  • 98.43″ (2500mm)
  • 59.06″ (1500mm)

Media Size (with liner) – Continuous:

  • Width: 2.13” to 7.09”(54 to 180mm)
  • Length: 0.24” to 98.54”(9 to 2503mm) | 0.35” to 59.17”(9 to 1503mm)

Media Size (with liner) – Dispense:

  • Width: 2.13” to 7.09”(54 to 180mm)
  • Length: Thermal Transfer Model: 0.51” to 14.13” (13 to 359mm) Direct Thermal Model: 0.71” to 14.13” (18 to 359mm)

Ribbon:

  • Length / width: 1968.5 ft. (600m) when ribbon width is 2.32” (59mm) to 6.96” (177mm)

  • Roll diameter: 4.25” (108mm)

  • Core: Core diameter: Ø 1” (25.4mm)

  • Wind direction: Face-in/out, No Setting Change Required

  • Ribbon Tension: Clutch-Free Electronic Control System

Dimensions: W 9.65” (245 mm) x D 16.42” (417mm) x H 11.81” (300mm)

Weight:

  • Thermal Transfer Model: 34lbs (15.5kg)

  • Direct Thermal Model: 30.8lbs (14.0kg)

Method: Direct Thermal / Thermal Transfer or Direct Thermal Only

Mode: Continuous, Dispense

Dual CPU:

  • CPU1: 2 GB Flash, 256MB RAM
  • CPU2: 4 MB Flash, 64MB RAM
  • User Registration Area 576MB
  • Receive Buffer 2.95MB

Internal Fonts:

  • 7 bitmap SATO fonts, 30 scalable SATO fonts, Multi-national language support (47 languages/Unicode), Single and double byte fonts (Korean, Chinese, Japanese)

Sensor Type:

  • Top Sensor, Adjustable Transmissive Sensor for Gap, Adjustable Reflective Sensor for Black Mark, Paper Out, Ribbon Near-End/Out, Label Near-End

Media Type:

  • Die Cut Labels, Paper or Synthetic Stock

Media Thickness (Label & Liner):

  • 0.002” to 0.012” (0.05 – 0.31mm)

Media Wind:

  • Face-in / Face-out. No Setting Change Required

SATO Genuine Consumables:

  • For maximum print quality and optimum use, SATO recommends the use of SATO genuine consumables.

Standard:

  • 2x USB 2.0 Type-A (host) Front and Rear, Ethernet 10/100Mbps / DHCP / Protocol: TCP/IP, LPR, FTP, TELNET, SNTP, RS232C Standard (XON/XOFF,RTS/CTS), DSUB25 pin (female)

Optional Wireless LAN Kit (Internal):

  • Wireless LAN, WiFi Certified, WiFi Direct, IEEE 802.11 a/b/g/n/ac Dual Band (2.4GHz, 5GHz), Security: WEP, WPA, WPA2, Dynamic WEP, DHCP Option 81.

Barcodes (Linear):

  • Code 39, Code 93, Code 128, CODABAR (NW-7), EAN 8/13, GS1 DataBarTM, GS1-128 (UCC/EAN 128), Interleaved 2/5, Industrial 2/5, JAN 8/13, Matrix 2/5, MSI, Bookland, POSTNETTM, UPC-A/E Intelligent Mail Barcode

2D Symbologies:

  • PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, QR Code, Micro QR Code, Security QR, Composite Symbologies, Aztec

Electrical Requirements:

  • Universal Auto-ranging Power Supply, 100-240VAC +/- 10%, 50/60Hz

Standards & Agency Approvals:

  • IEC 60950, CE Marking, NEMKO-GS, cMETus, UL60950-1, CSA C22.2, EN 60950-1, FCC, ICES-003, NMB-003, RCM, CCC, SRRC, KC, ROHS compliant

Environment (Operating):

  • 23° – 104° F (-5° to 40 ºC) / 15 – 85% RH (without condensation)

Environment (Storage):

  • -4° – 140° F (-20° to 60 ºC) / 15 – 90 % RH (without condensation)

Display Panel:

  • 3.5″ Full-Color LCD

  • 9 buttons control keys

Status LCD:

  • Blue / Red

Audible Alerts:

  • Sound beep (4 volume settings)

Emulation:

  • Auto Detect – SBPL®, SZPL®, SIPL®, SDPL®, (pre-installed), XML, AEP

Rotation:

  • Character data rotation: 0º, 90º, 180º, 270º / Barcode rotation: 0º, 90º, 180º, 270º

Self Diagnosis:

  • Thermal head check, Ribbon end detection, Test print, Head Lift detection, Auto Sensor Calibration

Remote Settings / Maintenance:

  • Web Browser, SATO All-in-One Printer Utilities, SOS, SNMPv3

Additional Functions:

  • Simple Standalone Mode, Multi Language support LCD message (31 Languages), USB Memory, clone functionality and firmware updates, Status return, Micro Label Printing, User guidance videos in display, Custom videos, Energy saving, SOS (SATO Online-services), Direct PDF printing, RTC- (Real-time Clock)

Drivers:

  • Windows, Linux, SAP, MacOS

WLAN Kit (specifics above), RFID Kit (S84NX Only), UHF (920MHz), ISO/IEC 18000-6 Type C Gen 2

For more information about qualified RFID inlays and labels please contact SATO.
