CTM 3600A-PA

The 3600a PA Printer Applicator is a rugged and versatile, high speed, thermal transfer labeler used to print and apply pressure sensitive labels to various products. The 3600a can be configured with various apply modules and mounted at a variety of angles to be apply to labels to the required panels of the product. Print quality is available from 203 to 609 dpi. Let our team help you to create a system that is right for you. Available in CE versions.

Tamp Module

SATO, ZEBRA and DATAMAX Print Engines Available

CTM 360a-PA User Manual
3600a-PA Brochure
3600a-PA Swing Tamp Brochure
3600a-PA Corner Wrap Brochure
3600a-PA DAT Brochure

The 3600a PA Printer Applicator is a rugged and versatile, high speed, thermal transfer labeler used to print and apply pressure sensitive labels to various products. A Sato, Zebra or Datamax print engine is integrated into an applicator to form a self-contained unit to print variable data. Assembled with right or left hand printer modules, the unit can be mounted in various positions to apply labels to the tops, sides or bottoms of a multitude of products with its proven tamp-blow application. Labels as small as ½” and as large as 7.1″ wide can be accommodated with its built-in barcodes and alpha-numeric fonts and 203, 305, 406 or 600 dpi print resolution. The 3600a plc control includes a remote 4.3″ color touchscreen operator interface display, user friendly and easy to read with an intuitive menu structure for operating parameters, and I/O diagnostics for use in labeler setup and troubleshooting of interface connectivity. An enhanced set up and testing capability provides for feeding of blank labels. Multi-layers of password protection offer security at operator and technical access levels. Remote mounting allows convenient locating regardless of labeler position or attitude. The operating program includes an encoder based Velocity Compensation feature for improved label placement accuracy at varying process line speeds. Various onboard I/O signals are pre-wired to an external connector; additional built-in ports allow optional features to be added in the field with minimum investment.

Standard Machine:

Features include Heavy Duty Construction, Tamp Blow Applicator, External Valves and Controls, Remote Operator Color Touchscreen Display, 12″ O.D. Label Roll, I/O Connection and Communication Port Connections. Optional features include Low Label/Low Ribbon, Out of Label/Out of Ribbon, End of Web, Red, Amber and Green “Ready” Stack Lights and 16″ Unwind and High Capacity Rewind for large label rolls.

  • Dimensions: 31.5" L x 27.5" W x 23.5" H
  • Weight: Approx. 150 lbs.
  • Electrical: 108-132 Volts AC, 5 Amps, 50/60 Hertz, Single Phase
  • Pneumatic: 90 psi., 3-5 cfm
  • Communications: RS 232, Parallel, Ethernet, USB or Wireless
  • Environmental (Operating): 41° F to 104° F (5° C to 40° C)
  • Environmental (Storage:): -4° F to 104° F (-20° C to 40° C)
  • Printing Methods: Thermal Transfer & Direct Thermal

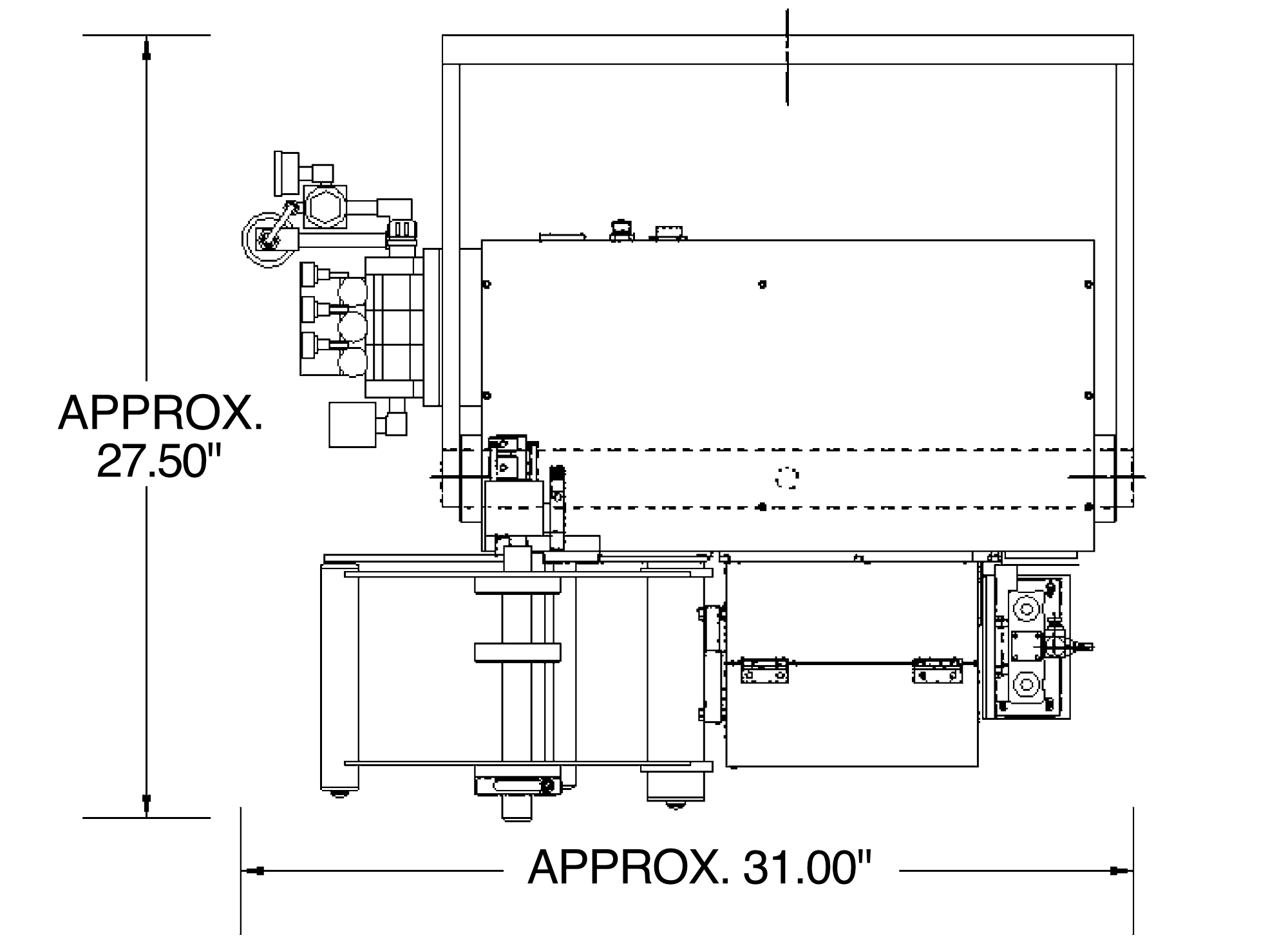

Dimensions, Head:

For more information regarding pricing, rates, scheduling, or for system specifications, please contact us.

NOTE: Label sizes dependent upon print engine model, also contact CTM Integration for custom sizes or shapes. Print resolutions are 203, 305, 406 and 600 dpi, with print speeds programmable up to 16″/sec. (dpi dependent). Print capabilities include fonts of various sizes and styles with independent height and width expansion; barcodes include OCR A/B, EAN 8/13, Code 39, Code93, UPC A/E (with extensions), Code 128, I 2 of 5, Maxicode, DataMatrix, PDF417, MicroPDF, CODABAR, MSI, POSTNET and others. The Graphics feature supports user defined fonts and graphics including custom logos. Labeling Speed is dependent upon label size, print speed and application type.
